25mm2 15kv Steel Wire Armoured XLPE Cable Aluminium Conductor

Brand Name : OEM

Certification : ISO/RoHS/CE

Place of Origin : China

MOQ : 200 meters

Price : Negotiation

Packaging Details : Standard export package

Delivery Time : 15-20 working days or Negotiation

Payment Terms : T/T, L/C, D/P, West Union, Paypal, Secure Payments

Supply Ability : 50000meters per week

conductor material : compact stranded hard drawn Aluminum wire

conductor screen : semi-conducting cross-linked polyethylene

Insualted Material : Cross-linked polyethylene

Sheath Material : Track resistant cross-linked polyethylene

Conductor material : Copper,Aluminum

Product name : MV 15kv 105 Degree LSZH Insulated Power Cable

Contact Now

25mm2 35mm2 Aluminium Conductor MV Power Cables / Mv 105 15kv Cable

Application :

For used in primary aerial cable on pole.
Classification :
Temperatrue :Normal operation 90 °C, Emergency over load conditions 130 °C ,Short circuit conditions 250 °C
Voltage rating : 15 kV phase to phase.

AC Test voltage :

27 kVac 5 minutes
Reference standard :

ICEA S-66-524 / MEA / PEA

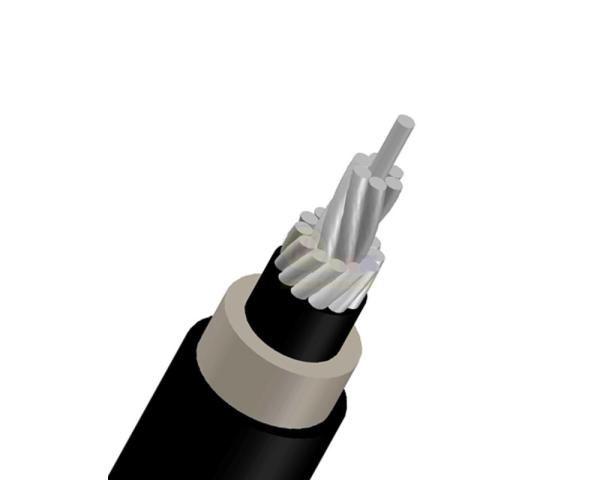

Construction :
Conductor : Compact stranded hard drawn Aluminium wire.
Conductor shield : Semi-conducting cross-linked polyethylene.
Insulation : Cross-linked polyethylene (Natural)
Sheath : Track resistant cross-linked polyethylene (Black)

Describe	Unit	Type
Nominal Sectional Area	mm²	25	35	50	70	95	120	150	185	240
Minimum No. of Wire	/	6	6	6	12	15	15	15	30	30
Approx. Conductor Diameter	mm	5.9	6.95	8.33	9.73	11.45	12.95	14.27	15.98	18.47
Insulated Thickness	mm	1.91	1.91	1.91	1.91	1.91	1.91	1.91	1.91	1.91
Sheath Thickness	mm	1.91	1.91	1.91	1.91	1.91	1.91	1.91	1.91	1.91
Approx. Overall Diameter	mm	15	16	17.5	19	21	22.5	24	25.5	28
Maximum D.C. Conductor Resistance at 20℃	Ω/km	1.2	0.868	0.641	0.443	0.320	0.253	0.206	0.164	0.125
Min.Insulated resistance at 15.6℃	mΩ-km	2019	1820	1612	1445	1284	1152	1070	980	874
Allowable Ampacities in Free Air at 40℃ Ambient	A	120	151	187	231	281	324	375	433	525
Approx. Cable Weight	kg/km	194	232	291	358	451	552	639	763	953
